How To Tune A CB Antenna In Just 4 Steps.

After all the installations of the antenna and CB radios, it’s a testing time. But wait did you also hear buzzing sounds like the antenna is not tuned? So, don’t worry we will talk you through the whole process of How to tune a CB antenna, and our expert guide on tuning can help you to maximize the signal strength and range with effective CB tuning techniques.

It s very necessary to understand what is cb antenna and what are their main purposes.

Understanding What Is Cb Antenna:

After installing the CB radio there is an uncommon sort of radio antenna designed especially for Citizen’s Band (CB) radios is the CB radio antenna. The operating range of CB radios is 26.965–27.405 MHz, which can be transmitted and obtained by using the antenna. It has a design of a vertical whip antenna which is the most widely used CB radio antenna; but, there are extra versions. An antenna of this type usually includes a fiberglass-covered steel rod that rises vertically from a car base.

Why Cb Tuning Is Required?

Cb tuning plays a vital role in the installation of CB radio systems to give the best outcome possible. It is an important step because:

1. It increases the performance of the CB system as it comes with only 4 watts.
2. It also insure that your CB radio does not get any damage while operating a high level of SWR meter.
3. Reduces access to interference.
4. Improve the signal strength and the transmission of channels.

Apply These 4 Secret Techniques To Improve How To Tune A Cb Antenna Using SWR Meter:

Now, let’s get to the main topic. How to tune a CB antenna by using SWR Metre in just 4 easy steps:

1. Disconnect The CB Radio To Connect With The SWR Meter:

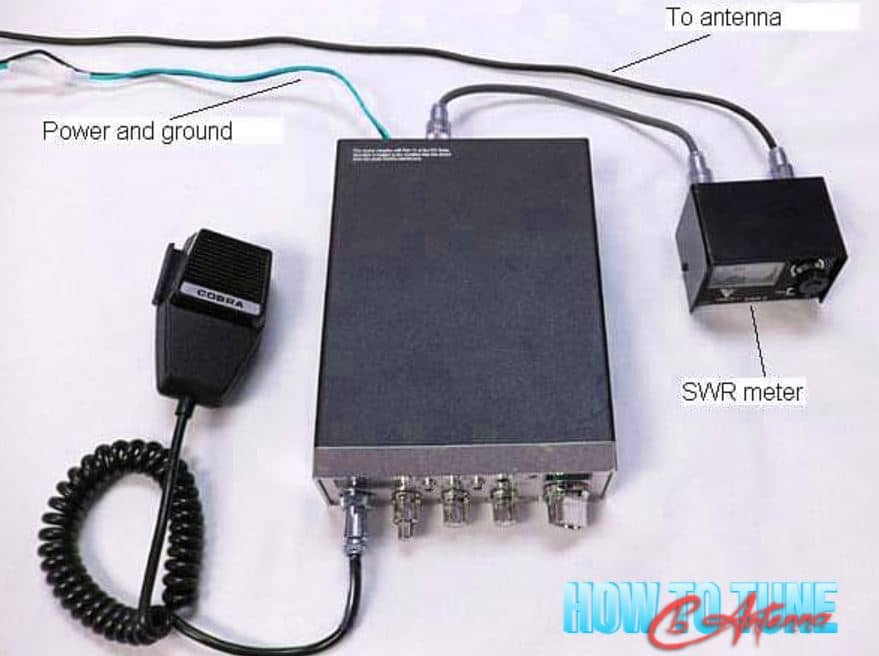

connect the SWR Meter After turning off your CB radio, put off the coaxial antenna cable from the radio’s lower back. The SWR meter needs to be located within the space between your radio’s antenna and transmitter. associate the convinced link from the receiving cord to the SWR meter where it designates “radio cord” or “Subterranean insect.” even though the labels may be located on the front of the meter, the connector inputs are typically positioned at the back.

connect one end of the short coax jumper cable to the transmitter role (XMIT connector) on the SWR meter; connect the opposite stop to the lower back of the CB radio, in which you removed the coax cable.

2. Searching The SWR- Meter:

Firstly switch on the SWR meter and also your radio and set the CB to channel 20. Activate the SWR meter and set the “function” switch to the FWD role. In case you press the wrong button, reset it by turning it off and returned on again. Key the hand microphone and maintain the “Transmit” button till the reading is completed.

Calibrate the meter by turning the knob labeled “SET” or “adjust” until the needle reaches the give-up of its range and then turn the function switch to the “REF” or “SWR” role and record the analysis from the SWR meter.

Release the transmit key on the microphone. it’s far essential to apply the SWR reading while the usage of an SWR meter, as some meters might also have both an SWR and an RF strength scale.

3. Repetition Of Steps:

Repeat step two for channels from 1 to 40 by holding the transmit button down.

4. Finally Compare The SWR Meter Readings:

You must check the SWR in order to ensure that your CB radio is operating properly. You can do this by looking at a particular meter and pressing a button on your radio. The meters’ measurements should vary between 1.5 and 1.8.

If the lower channels have correct measurements then the higher channel of your radio then shorten your antenna. And If the higher channels have correct measurements the lower channels then make it bigger. A little at a time, adjust the antenna’s length, checking each time to see how well it still functions. Till it functions as effectively as possible, keep making little adjustments. This will improve how well your radio operates!

Tuning Without SWR Meter:

Don’t worry if your radio does not contain a SWR meter or does not have one. We will also guide you on How to tune a CB radio without SWR-Meter. For this you need:

1. You will require another or second radio to compare the two transmit power signal outputs.
2. A short-length coax Cable.
3. An open space for testing the transmissions up to 40 feet apart.
4. A helper is willing to help you.

1. Searching For An Open Space:

A space for CB tuning should be 40 feet to and fro, without boundaries, along with buildings, cars, and people. Smaller rocks and greenery are perfect but avoid big bushes. The countryside or away from the city is good for tuning, as larger items can cause interference, resulting in terrible tuning or a lack of ability to tune the CB antenna.

2. Preparing The Antenna:

You should buy an antenna with a good shape and covered with a plastic cap on its tip so that you can easily do the cb tuning of an antenna. Since the plastic caps play an important part in tuning the antenna without them the CB antenna would not be tuned correctly.

3. Getting The Second Radio Ready:

To make certain the antenna is tuned successfully, compare the CB radio and antenna pair. If a second CB radio isn’t available, a phone can be used. Setting up a mobile smartphone on the same channel is simpler, but it is feasible. Get a person to assist in setting up the second radio, setting it to the equal channel, and setting it a great distance from the primary. Social media businesses can be helpful resource for locating other CB radio customers to assist with the process.

4. Setting Up The Connections:

To test the antenna’s transmission power, you’ll need to install a connection between the two radios. while you are on the same channel, you need to hear a few static coming from the alternative radio. once you recognize that the 2 radios are related, you may pass directly to tuning the radio.

What Is SWR Meter:

SWR is a big word for how well your CB radio antenna works. You want to make sure your device works really well so that it can send signals really far and you don’t hear any strange sounds. It also tells us how well the radio’s antenna is working. And if the SWR is high, it means the antenna and radio aren’t working together well, which can cause problems like bad signals, noise, and harm to the radio.

We can modify the antenna to improve the performance of the radio if the two components don’t function properly together. This will help the radio work at its best and not have problems with noise or losing signals. If the radio and antenna don’t talk nicely to each other, we can fix the antenna to be friends with the radio and play music better.

Frequently Asked Questions:

Summary:

The CB antenna is a unique type of radio antenna designed specifically for Citizen’s Band (CB) radios, with an operating range of 26.965–27.405 MHz. It has a vertical whip antenna design and is commonly used in CB radios. Tuning plays a vital role in the installation of CB radio systems to maximize signal strength and range. It ensures that the radio does not damage itself while operating at high levels of SWR, reduces interference access, and improves signal strength and transmission of channels.

Open space should be 40 feet away from buildings, cars, and people, with smaller rocks and greenery being ideal. Preparing the antenna in good shape and covering it with a plastic cap is essential for accurate tuning. If a second CB radio is unavailable, a phone or mobile smartphone can be used to compare the CB radio and antenna pair.
